4-way DI/AI IO Controller/4G Gateway

ZLAN6408

CAT1 4G to RS485/4 channels DI /4 channels AI

  • Supports custom Modbus RTU to JSON conversion.
  • Supports edge computing features including data limit violation alerts, data translation and scaling calculations, data change uploads, and device offline alerts.
  • Supports 4 channels of DI digital input and AI analog input. The analog input accuracy is 12 bits.
  • Supports 3 network mode options: TD-LTE, FDD-LTE, and GSM, including China Unicom 4G, 2G, China Mobile 4G, 2G, and China Telecom 4G networks.
  • Serial port supports baud rates from 1200 to 115200, supports 5 to 8 data bits, supports no parity, odd parity, even parity, and supports 1 to 2 stop bits.

Contact

Dowmload
  • Product Introduction
  • Technical Parameter
  • Product File

Summary

The ZLAN6408 is a newly launched 4G data acquisition gateway by Shanghai ZLan, which supports RS485 serial port acquisition functions. It can connect third-party RS485 acquisition devices and controllers on the RS485-4G interface, achieving remote acquisition and control. It also supports 4-way DI/AI acquisition, which includes digital input and analog input.

The DI input supports dry and wet nodes with optical isolation; the AI input supports 4-20MA current input, and the ADC precision is 12-bit. The properties of AI can be modified according to needs, such as 0-5V voltage, 0-10V voltage type, resistance type, etc.

The ZLAN6408 is a high-performance data transmission and processing device that supports TCP, HTTP, and MQTT protocols, ensuring the security and efficiency of data transmission. The gateway not only facilitates easy remote data acquisition and transmission but also possesses powerful data processing capabilities. In particular, the gateway supports the conversion of serial DLT645 protocol and Modbus RTU protocol data to JSON format over the network, making data interaction between different systems more convenient.

Feature

  • Supports custom Modbus RTU to JSON conversion.
  • Supports edge computing features including data limit violation alerts, data translation and scaling calculations, data change uploads, and device offline alerts.
  • Supports 4 channels of DI digital input and AI analog input. The analog input accuracy is 12 bits.
  • Supports 3 network mode options: TD-LTE, FDD-LTE, and GSM, including China Unicom 4G, 2G, China Mobile 4G, 2G, and China Telecom 4G networks.
  • Serial port supports baud rates from 1200 to 115200, supports 5 to 8 data bits, supports no parity, odd parity, even parity, and supports 1 to 2 stop bits.
  • Supports serial AT command configuration and supports viewing some parameters with ZLVircom software.
  • Firmware updates can be performed through the serial port.

Technical Parameter

Figure

  • Support mode
  • 4G CAT1 supports 3 modes:
    B1/B3/B5/B8@FDD LTE
    B34/B38/B39/B40/B41@TDD-LTE
    B3/B8@GSM
    It includes China Unicom 4G,
    2G, China Mobile 4G,
    2G, and China Telecom 4G networks.
  • Transfer rate
  • LTE：Max 10Mbps（Downward）/Max 5 Mbps（Upward）
    GPRS：85.6Kbps（Downward）/Max85.6Kbps（Upward）
  • SIM
  • Voltage: 3V, 1.8V; Size: Mini Card
  • Antenna interface
  • 50Ω/SMA rubber stick antenna or suction cup antenna optional
  • Serial Port Type
  • RS485*2:485-IO、485-4G
  • Network protocols
  • MODBUS TCP、JSON、HTTP、MQTT
  • RS485 Protocol
  • MODBUS RTU
  • Serial port parameters
  • Baud rate: 1200~115200bps; Data bits: 5 to 8 bits;
    Stop bits: 1 to 2 bits; Parity: None, Even, Odd.
  • Power interface
  • 3.5mmTerminal block
  • DI input
  • 4-way dry/wet node, low level active
  • AI output
  • 4-way 4-20ma/0-5V/0-10V, 12-bit precision
  • Input voltage
  • DC9V~24V
  • Work power
  • 1W
  • Operating temperature
  • -40 degrees to 85 degrees
  • Storage temperature
  • -40 degrees to 120 degrees
  • Humidity range
  • 0~95% Non-condensing
  • Product dimensions
  • L*W*H=9.4cmx6.5cmx2.5cm

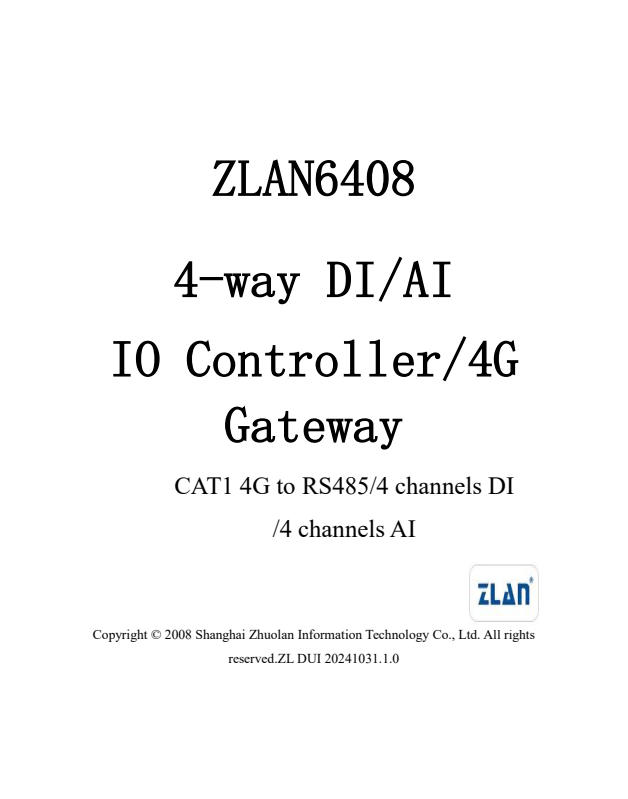

Document Download
