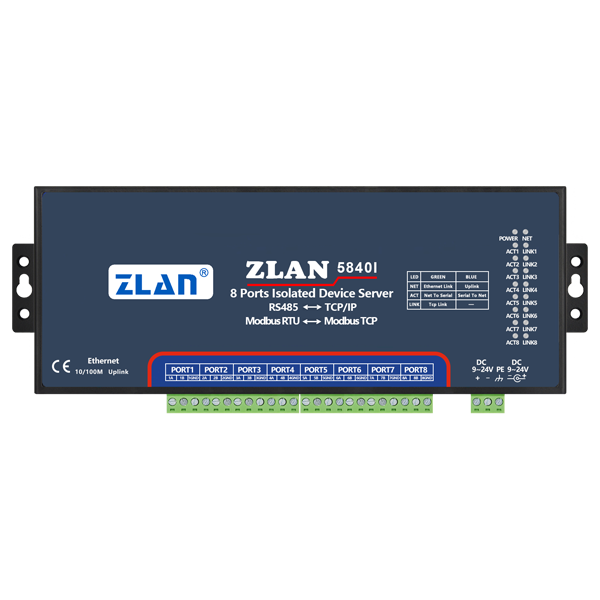

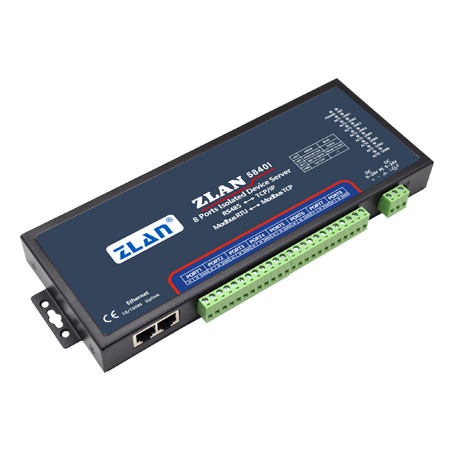

8 ports RS485 to TCP/IP converter

ZLAN5840I

8 ports RS485 to TCP/IP converter

  • Support TCP server, TCP client, UDP mode
  • Baud rate support 1200~460800bps
  • Provide computer terminal search, configuration equipment secondary development kit DLL development library.
  • Support DHCP dynamic access to IP
  • Support cloud remote search device
  • Support remote view of device TCP connection status via software

Contact

Dowmload

buy online

  • Product Introduction
  • Technical Parameter
  • Product File

Product video

Summary

ZLAN5840I is the new generation RS485 isolated 8-port server /Modbus gateway developed by Shanghai ZLAN information technology Co., LTD. It can effectively isolate the influence of RS485 bus interference on the operation of the device and ensure the stability of the device. Suitable for RS485 bus interference environment. Built-in power surge protection.

ZLAN5840I can realize 8-way serial port data to TCP/IP. Compared with ZLAN5800A, ZLAN5840I supports Modbus gateway function from Modbus TCP to Modbus RTU. Modbus gateway supports simultaneous reading of data on multiple Modbus clients, which is called "multi-host" function.

ZLAN5840I support 8 RS485 serial ports, and RS485 interface is a terminal interface. Two 10M/100M Ethernet ports are supported. The user connects the device to the network through a network cable. The upper computer can access 8 serial ports simultaneously through virtual serial ports or TCP protocol.

Features

  • 8 serial ports support photoelectric isolation RS485 serial ports.
  • 8 serial ports can work independently without interference and can be configured for different baud rates.
  • Support network switch function of 2 network ports, can be used as switch at the same time.
  • Abundant indicator light, each serial port has a separate TCP connection indicator light and data activity indicator light.
  • Support TCP server, TCP client, UDP mode, UDP multicast. Supports 10 TCP connections as a TCP server.
  • Baud rate support 1200~460800bps, data bit support 5~9 bit, check bit can be none, odd check, even check, mark, space five ways.
  • Support device connection to send MAC address function, convenient cloud management device.
  • Provide computer terminal search, configuration equipment secondary development kit DLL development library.
  • Support DHCP dynamic access to IP, DNS protocol connection domain name server address.
  • Support cloud remote search device, device parameters configuration.
  • Support remote view of device TCP connection status via software. Virtual serial port support data monitoring function.
  • Support Modbus gateway function, support Modbus RTU to Modbus TCP.
  • Support multi-host function: in the question and answer query mode, support network port allows more than one computer access to the same serial port device.

Technical Parameters

Figure

  • Interface
  • RS485: 8 terminal; 2 RJ45 port
  • Power Supply
  • 5.5mm, Inside positive outside negative, standard outlet; Terminal
  • Size
  • L x W x H = 27mm×10.5mm×2.6mm

Communicate Interface

  • Ethernet
  • 10M/100M, anyone can work, 2KV surge protection
  • Serial
  • RS485×8：485A, 485B, GND

Serial Parameters

  • Baud rate
  • 1200~460800bps
  • Data bits
  • 5～9
  • Parity
  • None, Odd, Even, Mark, Space
  • Flow control
  • RTS/CTS, DTR/DCT, NONE

Software

  • protocol
  • ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、DHCP、DNS
  • Setting method
  • ZLVirCom, WEB browser, device management library
  • Communication method
  • Socket, Virtual serial, DLL

Power Requirement

  • Power
  • 9～24V DC, 5.4W

Environment

  • Running temperature
  • -40~85℃
  • Storage temp
  • -45~120℃
  • Humidity
  • 5~95%RH

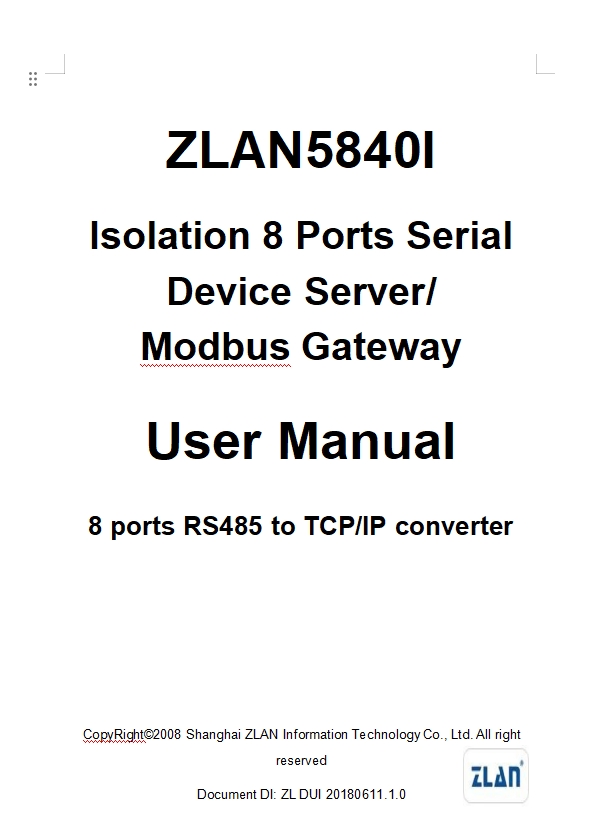

Document download
