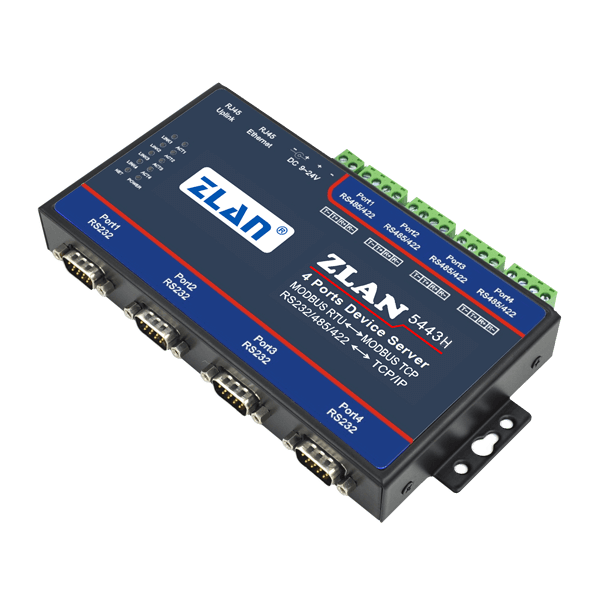

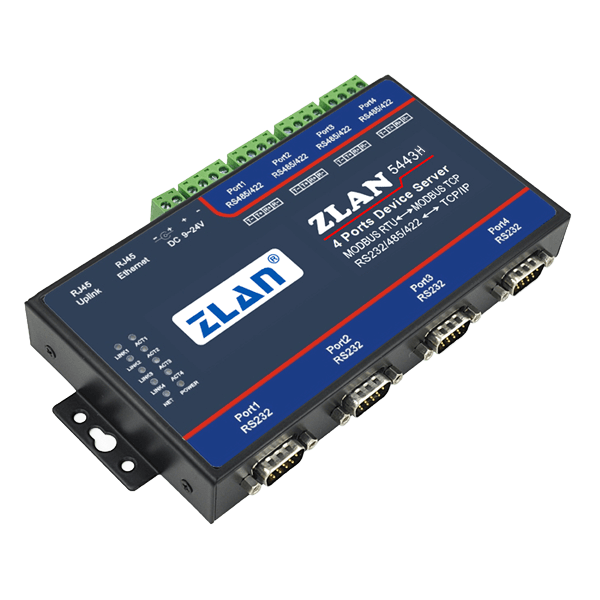

4 Ports Serial Device Server

ZLAN5443H

4 serial port RS232/485/422 To TCP/IP converter

  • The 4 serial ports all support 3 serial forms: RS232, RS485, RS422.
  • The 4 serial ports can independently full-duplex working, no interference between each other.

Contact

Download

buy online
  • Product Introduction
  • Technical Parameter
  • Product File

Summary

ZLAN5443H is a new generation 4 serial port server developed by Shanghai Zhuolan Information Technology Co., LTD. It can transfer four serial ports to TCP/IP and support two 10M/100M Ethernet ports. ZLAN5443H supports the Modbus gateway function from Modbus TCP to Modbus RTU. The Modbus gateway supports simultaneous data reading over multiple Modbus clients, that is, the multi-host function.

ZLAN5443H submodel ZLAN5443H, H supports baud rates up to 921.6bps. ZLAN5443H supports connection to six destination IP addresses as a client.

ZLAN5443H supports four RS232 serial ports and four RS422/485 serial ports. Users connect the ZLAN5443H to the network through one network cable. The host computer can access four serial ports through the virtual serial port or TCP protocol.

The ZLAN5443H can be expanded to 8 serial ports, 12 serial ports, 16 serial ports, or a maximum of 32 serial ports.

Feature

  • Power Electronics, Intelligent Meters and Energy Consumption Monitoring;
  • As the gateway of the IoT as the communication bridge between devices and the cloud;
  • Remote monitoring and program downloading of all kinds of automatic PLC;
  • Various configuration software and equipment communication interfaces;
  • Network of devices in the field of access control and security;
  • Network information collection of medical equipment;

Technical Parameter

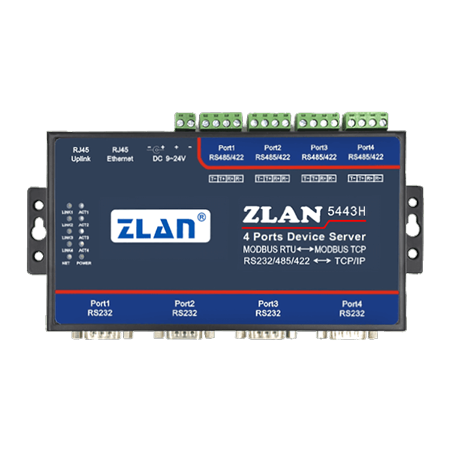

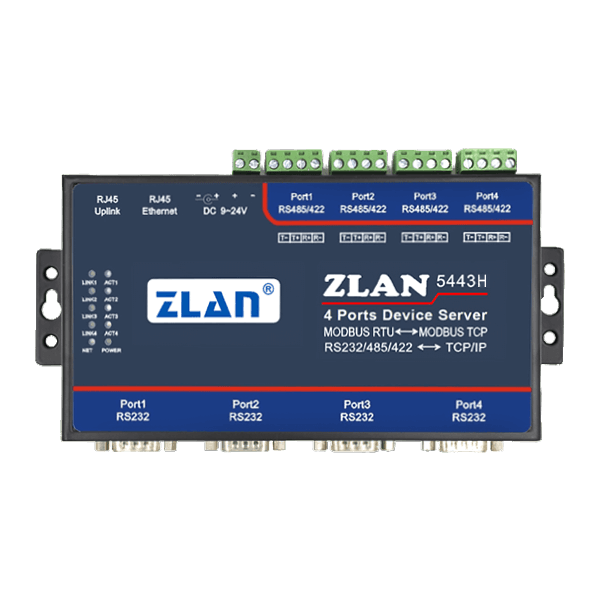

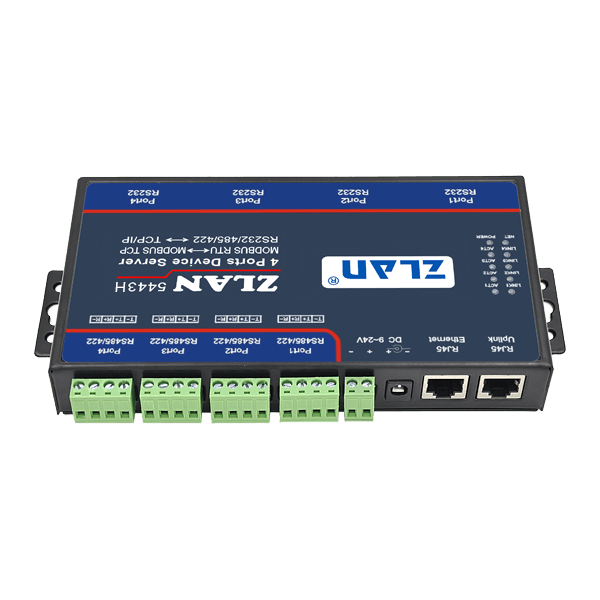

Appearance

  • Interface
  • RS232：DB9、RS485：terminal、RS422：terminal
  • Power supply
  • 5.5mm，+ inside and - outside, standard power outlet
  • Size
  • L x W x H =9.2cm×19.7cm×2.5cm

Communication view

  • Ethernet
  • 10M/100M，2 KV level Surge protection
  • Serial port
  • RS232/485/422×4：RXD，TXD，GND， CTS，RTS，DTR， DCR

Serial port data

  • Baud rate
  • 1200~460800bps
  • Parity
  • None, Odd, Even, Mark, Space
  • Digit bits
  • 5～9 bits
  • Flow control
  • RTS/CTS，DTR/DCR, NONE

Software

  • Protocol
  • ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、
    DHCP、 DNS、Modbus TCP protocol
  • Configuration mode
  • ZLVirCOM tool、Device management function library
  • Communication
  • Socket、Virtual serial port、Device management function library
  • Working mode
  • TCP server, TCP client, UDP, UDP broadcast

Power supply

  • Power
  • 9～24V DC
  • Consumption
  • 5W

Environment

  • Operation temperature
  • -40~85℃ 5~95% Humidity
  • Storage temperature
  • -65~165℃ 5~95% Humidity

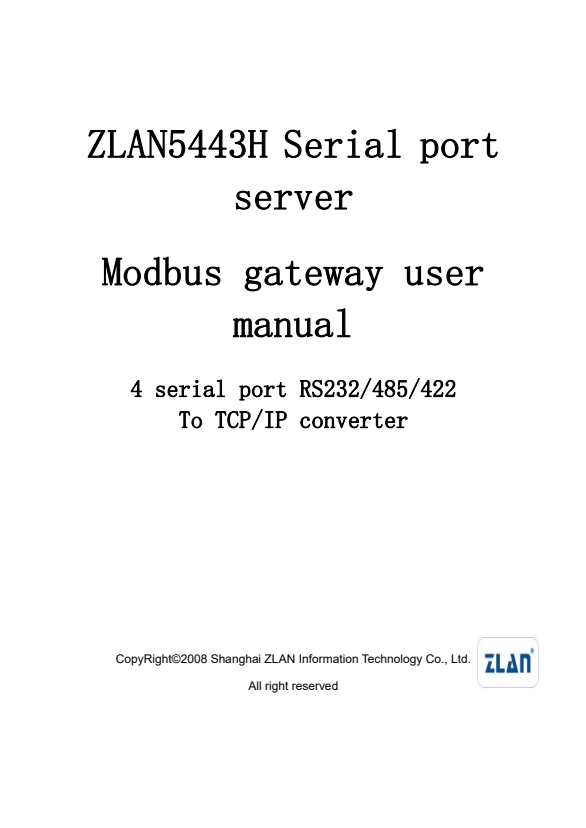

Document download
