Modbus iot Gateway

ZLAN8309S

Modbus iot Gateway

Contact us

Download

buy online

  • Product introduction
  • Specification parameter
  • Product information

summarize

ZLAN8309S series is a compact and powerful Internet of Things gateway launched by Shanghai ZLAN after the successful launch of ZLAN8309. In terms of hardware, it integrates a variety of interfaces: 4G, WIFI, network port and 232/485 interface. In terms of software, it has multiple practical functions such as data acquisition, Modbus gateway, MQTT gateway, RS485 to JSON conversion and routing. In order to meet the needs of different countries for network frequency bands, the ZLAN8309S series also offers multiple seed models to choose from.

8309S sub-models as followings：

Item No. Function 4G suitable zones
ZLAN8309S WiFi/Eth/CAT1 4G Single serial port server /includes router function China, India, Southeast Asia
ZLAN8309S-E WiFi/Eth/CAT1 4G Single serial port server /includes router function Europe, Middle East
ZLAN8309S-SA WiFi/Eth/CAT1 4G Single serial port server /includes router function South America, Australia
ZLAN8309S-NA WiFi/Eth/CAT1 4G Single serial port server /includes router function North America
ZLAN8309S-G WiFi/Eth/CAT1 4G Single serial port server /includes router function Universal

ZLAN8309S series support 9 ~ 24V wide voltage, round hole power access (can change the terminal access).

The basic application of ZLAN8309S can realize the conversion of 1 TCP/IP protocol to the serial port, and can realize the data collection of the serial port device through the network. The network side can use the virtual serial port to connect the serial port software or the direct TCP/IP communication software.

ZLAN8309S also supports the Modbus RTU to Modbus TCP function, and supports the storage Modbus gateway feature. It can also be used as a non-storage Modbus gateway.

ZLAN8309S series applications： Power electronics, smart meters and energy consumption monitoring; As a gateway to the Internet of Things as a communication bridge between devices and the cloud;

Various configuration software and device communication interfaces; Access control security field equipment networking； A typical application connection is shown in Figure 2. The original serial device is connected to the serial port of ZLAN8309S, and the 8309S is connected to the computer through network cable /WiFi or to the cloud server through 4G. The software on the computer connects to the 8309S through TCP/IP, virtual serial port, or cloud server. Thereafter, any data sent by the serial device is transparently transmitted to the computer's software, and the data sent by the software to the ZLAN8309S over the network is transparently transmitted to the serial

Product specification

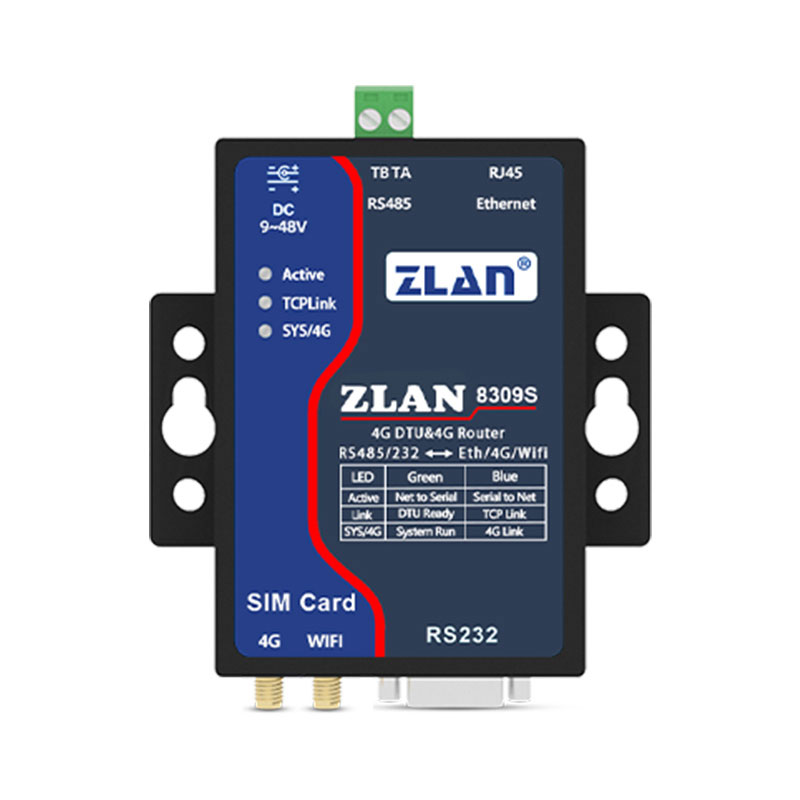

Appearance

  • Interface
  • LAN:RJ45, 485: terminal, 232: DB9
  • Power supply
  • Round hole mode (adjustable terminal)
  • Size
  • Length × width × height =9.4cm×6.5cm×2.5cm
  • Antenna
  • WIFI*1, 4G*1 Interface :50Ω/SMA male
  • SIM card
  • Voltage: 3V, 1.8V; Size: large card (small card can be purchased to use)

CPU parameters

  • Parameter
  • Main frequency 580M, RAM:64M, FLASH:64M

Wireless parameter

  • 4G parameters

  • *8309S: 4G CAT1 supports 3 modes: B1/B3/B5/B8@FDD LTE B34/B38/B39/B40/B41@TDD-LTE 900/1800MHz@GSM includes China Unicom 4G, 2G, mobile 4G, 2G and China Telecom 4G network * The following international versions of 4G modules may be changed, *8309S-E: 4G CAT1 supports two modes: B1, B3, B5, B7, B8, B20@FDD LTE 900/1800MHz@GSM *8309S-SA: 4 g CAT1 supports two modes: B1 / B2 / B3 / B4, B5 / B7 / B8 850/900/1800/1900 / B28 B66 @ FDD LTE MHZ @ GSM * 8309 s - NA: 4G CAT1 supports one mode: B2/B4/B5/B12/B13/B14*/B66/B71*@FDD LTE *8309S-G: 4 g CAT1 supports two modes: B1 / B2 / B3 / B4, B5 / B7 / B8 / B12 / bl3 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B71 * @ FDD LTE B34 B38 / B39 / B40 / B41 @ TDD LTE
  • Transmission rate
  • LTE: Max 10Mbps (downlink) /Max 5 Mbps (Uplink) GPRS: 85.6Kbps (Downlink) /Max85.6Kbps (uplink)
  • WIFI parameter
  • Transmission rate: 300 Mbps Max Wireless standard: 802.11b /g/n Frequency range: 2.412GHz-2.484GHz

Serial port parameter

  • Baud rate
  • 300~921600bps
  • Data bit
  • 7 ~ 8 bits
  • Check
  • None, odd check, even check, mark, space

Software

  • Protocol
  • ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
  • Configuration mode
  • ZLVirCOM Tools, WEB
  • Conversion protocol
  • Modbus TCP, MQTT, JSON, HTTP, BACnet(ZLAN8309-B)
  • Modbus Gateway
  • Support multi-host mode, storage mode, Pre-configuration table (ZLMB) mode
  • Communication mode
  • TCP/IP direct communication, virtual serial port mode

Working mode

  • TCP server, TCP client (while TCP server also exists), UDP, UDP multicast

Power requirements

  • Power supply
  • 9 ~ 24V DC, 150ma@12V

Secondary development

  • Development platform
  • Linux environment
  • Development language
  • C language

Environment requirements

  • Operating temperature
  • -40~85℃
