32 serial ports RS232/485/422 to TCP/IP server

ZLAN5W12

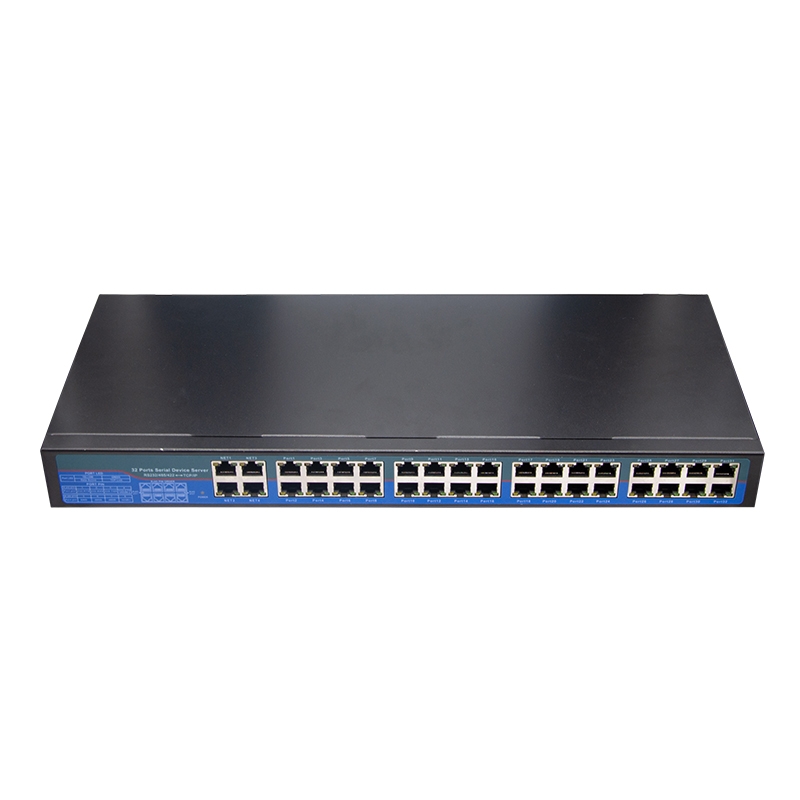

ZLAN5W12 Rack type 32 ports server

  • 32 serial ports support RS232, RS485, RS422 three serial ports
  • The 32 serial ports can work independently in full duplex without interfering with each other and can be configured with different baud rates.
  • Supports the function of a network switch with four network ports and can be used as a switch.

Contact

Download

buy online
  • Product Introduction
  • Technical Parameter
  • Product File

Summary

ZLAN5W12 Serial port server is a standard 1U rack-mounted 32 serial port protocol converter between RS232/485/422 and TCP/IP developed by Shanghai ZLAN Information Technology Co., LTD. ZLAN5W12 supports 32 RS232 serial ports /32 RS485/RS422 serial ports (RS422 requires 5W12-422 models), and RS232 supports flow control. Connected to the ZLAN5W12 through one network cable, 32 serial ports can work in full duplex at the same time. Each serial port can be used as TCP server, TCP client, UDP, and UDP multicast. Supports four network ports with the switch function.

ZLAN5W12 uses an IP address for each of the eight serial ports (ports). Different ports are distinguished by ports. It also supports eight IP addresses for eight serial ports. Ports are the same and can be distinguished by IP addresses. A total of 32 IP addresses are required. ZLAN5W12 has the functions of Modbus TCP to Modbus RTU and serial port to Telnet protocol.

peculiarity

  • 32 serial ports support RS232, RS485, RS422 three serial ports (RS422 needs to order 5W12-422 model).
  • The 32 serial ports can work independently in full duplex without interfering with each other and can be configured with different baud rates.
  • Supports the function of a network switch with four network ports and can be used as a switch.
  • Various indicators. Each serial port has its own TCP connection indicator and data activity indicator.
  • 220V AC power supply.

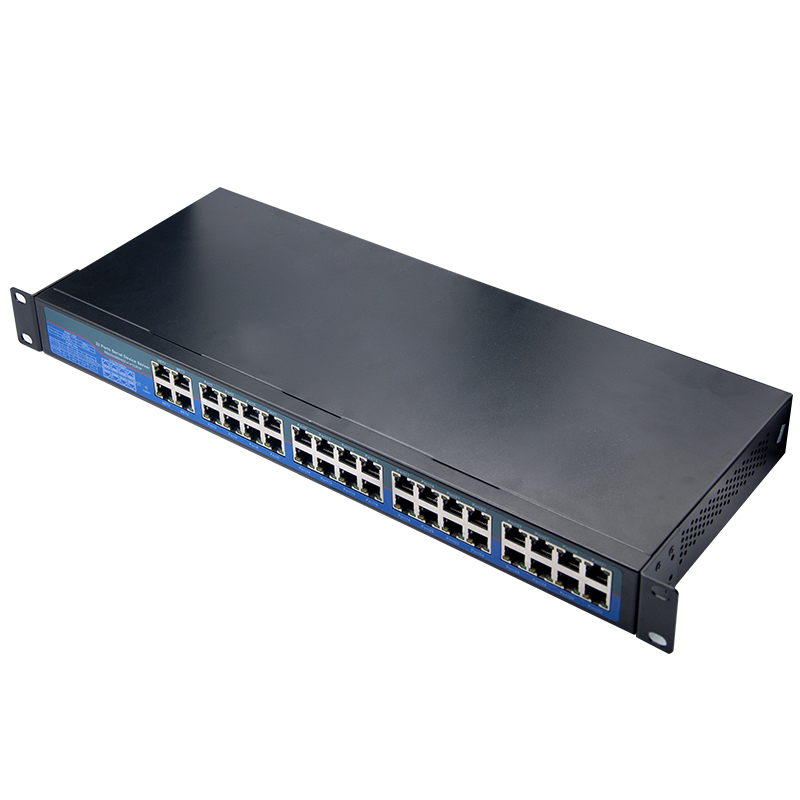

  • 19-inch standard 1U frame structure design for easy installation, with rack mounting accessories.
  • Passed Level 4 EMC test, industrial grade temperature range.

Technical Parameter

Figure

  • Interface
  • 36pcs of RJ45：includes 4 LAN, 32 serial ports.
  • Power Supply

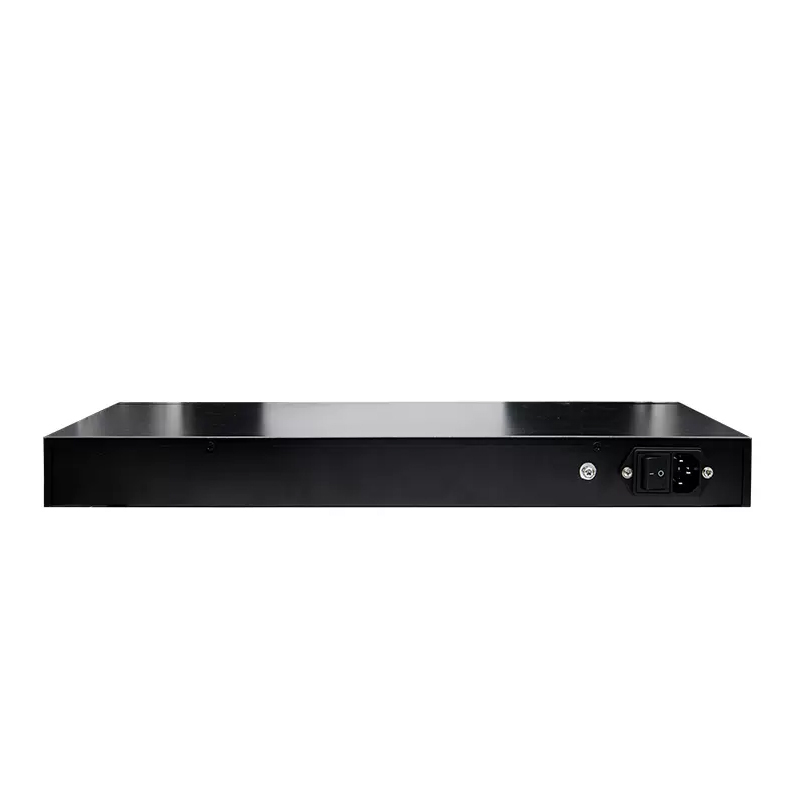

  • AC220V power supply input，consumption：10W
  • Size
  • 19 inch 1U standard size L x W x H =48cm×18cm×4.4cm

Communicate Interface

  • Ethernet
  • 4pcs of 10M/100M，Switch structure，random connection
  • Serial
  • 32 serial ports, each including: RS232/RS485/RS422 (RS422 requires jumper)

Serial Parameters

  • Parity
  • None, Odd, Even, Mark, Space
  • Data bit
  • 5～9
  • Stop bit
  • 1,2
  • Flow control
  • RTS/CTS,DTR/DCR, XON/XOFF
  • Baud rate
  • 1200bps～460800bps

Software

  • protocol
  • ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、DHCP、DNS
  • Setting method
  • ZLVirCom, WEB browser, device management library
  • Net communication method
  • Socket, Virtual serial , device management library

Environment

  • Running temperature
  • Industrial Grade
  • Storage temp
  • -65~165℃
  • Humidity
  • 5~95%RH
