2 Ports Serial Device Server

ZLAN5240

The high reliability and high performance serial server with Modbus gateway is the flagship product of serial server

  • Two RS232/485/422 serial devices can be connected to Ethernet
  • Full duplex, no packet loss, cost-effective serial server
  • Support TCP server, TCP client, UDP mode
  • Support for virtual serial port, Web login, or configuration using VirCom

Contact

Download
  • Product Introduction
  • Technical Parameter
  • Product File

Summary

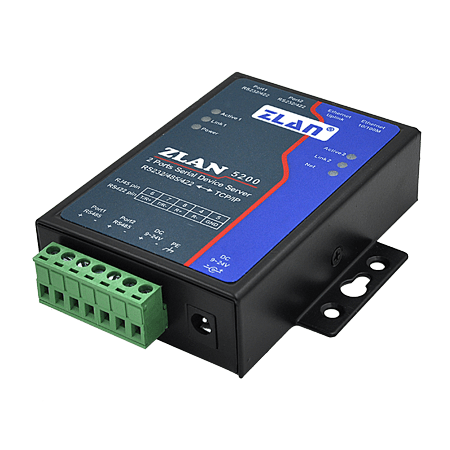

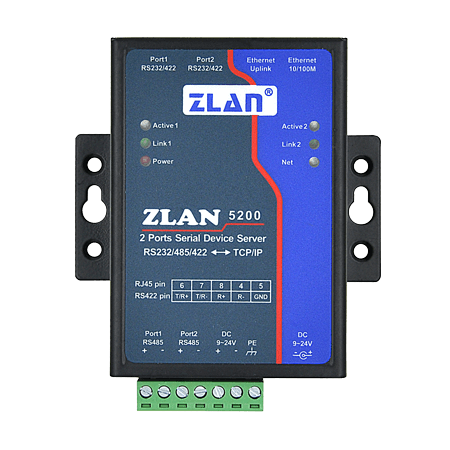

ZLAN5240 Serial port server is a 2 serial port RS232/485/422 and TCP/IP protocol converter developed by Shanghai ZLAN Information Technology Co., LTD. It also supports the Modbus TCP to Modbus RTU function. The ZLAN5240 supports two RS232 serial ports and two RS422/485 serial ports, which are connected to the ZLAN5240 through one network cable to realize the full-duplex operation of the two serial ports. The RS485 port is a green wiring terminal port, and the RS232/RS485 port is an RJ45 network port. ZLAN can be equipped with RJ45 to DB9 wire, 2 such wires connected to the RS232 interface of 2 RJ45 can lead to 2 DB9 male RS232 connectors. The 5240 also provides an additional Ethernet interface that can be used as a switch or cascading. The ZLAN5240 supports four serial ports, six serial ports, and eight serial ports. The 5240 provides two power access modes: power socket and wiring terminal, wide voltage range, and shell ground wiring protection.

The serial port server can easily connect the serial port device to the Ethernet and Internet, and realize the network upgrade of the serial port device.

ZLAN5240 is a cost-effective serial server, RS232 interface support full duplex, uninterrupted communication; RS485 embedded 485 lightning protection. Support DHCP, DNS, can easily achieve remote device monitoring. Virtual serial ports are supported, and the original serial port PC software does not need to be modified.

Feature

  • 1. Supports full-duplex, high-rate data forwarding without packet loss.
  • 2. Economic price.
  • 3. Support TCP Server, TCP Client, UDP mode, UDP multicast, and switch to Real Com Driver mode automatically when communicating with ZLVirCom.
  • 4. The baud rate supports 1200 ~ 460800bps, the data bit supports 5 ~ 9 bits, the check bit can be None, odd check, even check, Mark, Space five ways, support CTS/RTS hardware flow control.
  • 5. Built-in 485 lightning protection function.
  • 6. Free equipped with Windows virtual serial port & device management tool ZLVircom, supports virtual serial port, and can search ZLAN5240 with one click, modify parameters.
  • 7. Provide device management function library (Windows DLL dynamic link library), convenient for users to use VC, VB, Delphi, C++Builder to develop applications. Users only need to use interface functions such as read and write to communicate with the ZLAN5240.
  • 8. Innovative network disconnection detection mechanism, whether ZLAN5240 works in TCP Server mode or TCP Client mode, it can automatically re-establish the connection after disconnection, ensuring real-time data accessibility.
  • 9. Suitable for network upgrade of Modbus RTU, can be matched with 3D force control mode components; It also supports the function of converting Modbus TCP to Modbus RTU directly.
  • 10. Built-in Web server, you can modify the module parameters through the browser.
  • 11. Support DHCP to solve IP management and IP conflict problems.
  • 12. Supports DNS, which meets the requirements for communication through domain names.
  • 13. Support up to 10 TCP connections to communicate with networking modules simultaneously.
  • 14. Flexible serial data framing Settings to meet various subcontracting needs of users.
  • 15. UDP mode supports the dynamic destination address mode, which facilitates multiple users to manage the same networking module at the same time.
  • 16. Real COM Driver supports multi-machine communication via bit 9 (address frame 1, data frame 0).
  • 17. Supports remote search for ZLAN5240 and configuration of ZLAN5240 parameters over the Internet.
  • 18. Support parameter write protection to prevent mismodification. Supports the start function with default parameters.
  • 19.2KV class network port surge protection.
  • 20. High strength anti-electromagnetic interference, the shell adopts anti-radiation SECC board.

Technical Parameter

Network interface

  • Ethernet
  • 2 10M/100M interfaces, can be connected to any one, 2 KV surge protection
  • Serial port
  • RS232/485/422×2: RXD, TXD, GND, CTS, RTS

Serial interface

  • Baud rate
  • 1200~460800bps
  • Check bit
  • None, Even, Odd, Space, Mark
  • Data bit
  • 5 ~ 9
  • Flow control
  • RTS/CTS, NONE

Software feature

  • Protocol
  • ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
  • Communication mode
  • Socket, virtual serial port, device management library
  • Configuration mode
  • ZLVirCOM tools, WEB browsers, device management libraries

Power requirements

  • Power supply
  • 9 ~ 24V DC, 2~4W

Mechanical characteristics

  • Size
  • Length × width × thickness =9.4cm×6.5cm×2.5cm
  • Power supply
  • 5.5mm, positive inside and negative outside, standard power socket; Terminal
  • Interface

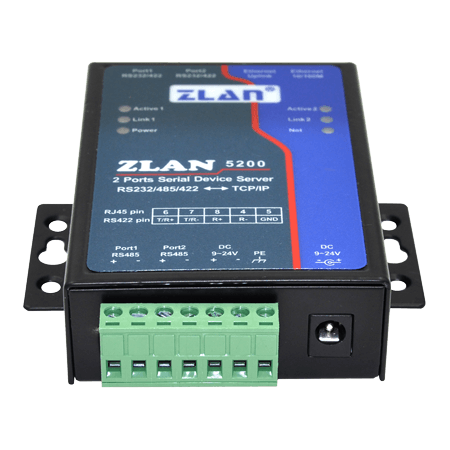

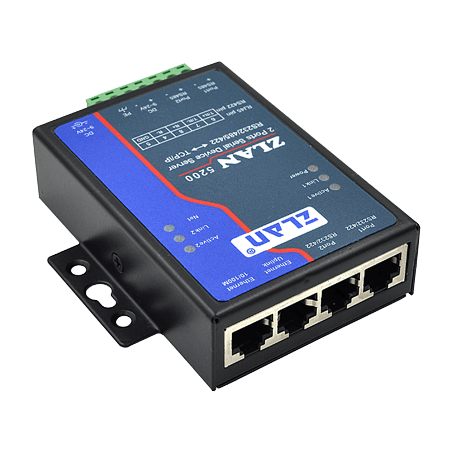

  • 485: terminal; 232: RJ45 (available with RJ45 to DB9 wire); 422: RJ45

Working environment

  • Working temperature, humidity
  • -40~85℃, 5 ~ 95% RH
  • Storage temperature, humidity
  • -45~165℃, 5~ 95% RH

Document download

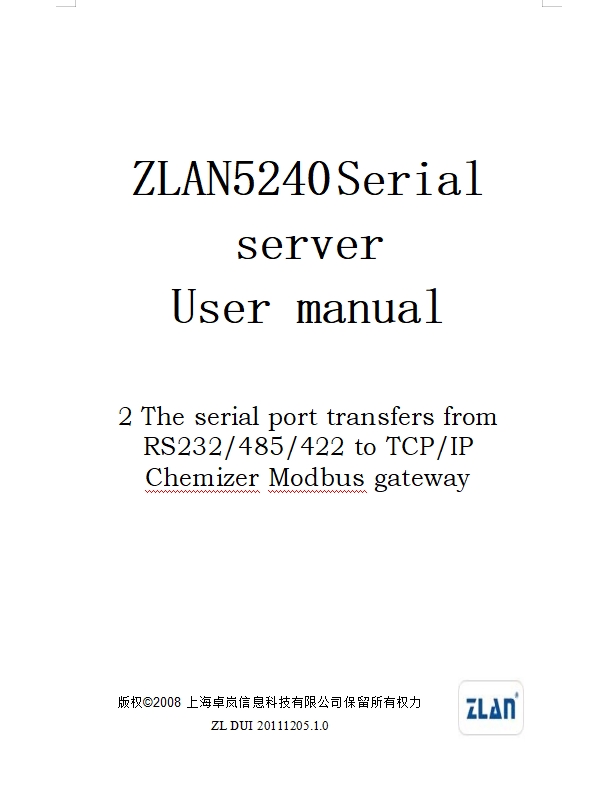

Related documents
