ZLAN5107 Serialserver /Modbus Gataway

ZLAN5107

ZLAN5107 is a RS232/485/422 device data collector/iot gateway specially designed for industrial environments, with serial server

  • Supports the Modbus gateway function and transfers from Modbus RTU to Modbus TCP
  • Multiple hosts
  • Support MQTT gateway function.
  • Support JSON to Modbus RTU and 645 instrument protocols, support HTTP POST, HTTP GET format upload data.
  • Support custom heartbeat packet and registration packet functions

Contact

Dowmload

buy online

  • Product Introduction
  • Technical Parameter
  • Product File

Summary

ZLAN5107 is a RS232/485/422 device data collector/iot gateway specially designed for industrial environments, with serial server, Modbus gateway, MQTT gateway, RS232/485/422 to JSON and other functions in one. It has 3 interfaces RS232/485/422 (use either one) and an Ethernet interface. It supports desktop screw hole installation, easy to install. Terminal type power supply /5.5MM round hole adapter power supply, 9 ~ 24V wide voltage input. Compared with ordinary serial server, it has higher cost performance.

When it is used as a common serial port server, connect the network port of 5107 to the Ethernet, and the host software can send data to the serial port of 5107 through TCP/UDP or virtual serial port. The data received on the serial port is also transmitted to the software on the TCP side or the virtual serial port. In the virtual serial port mode, the serial port software that connects to the virtual serial port is not required.

Features

  • Industrial power supply: with wiring terminals, power plug two kinds of power wiring, easy to use in industrial occasions. Can be 9 ~ 24V wide voltage supply.
  • With RS232/485/422 three kinds of serial port interface. You can choose one to use.
  • Network port 2KV surge protection.
  • Abundant panel indicators for easy debugging: In connection, there are not only LINK lights indicating whether the network cable is well connected, but also LINK lights indicating the establishment of TCP connections; For data indicators, there are independent indicators for serial port to network port and network port to serial port.
  • Support TCP server, TCP client, UDP mode, UDP multicast. The TCP client also supports the TCP server function. The TCP server supports 30 TCP connections and the TCP client supports 7 destination IP addresses.
  • The baud rate ranges from 300 to 921600bps, and the data bit ranges from 7 to 8 bits. The parity bit can be none, odd, even, mark, or space.
  • Supports the MAC address sending function when the device is connected, facilitating device management by the cloud.
  • Provide computer side search, configure device secondary development kit DLL development library.
  • Supports Web browser configuration, dynamic IP address acquisition by DHCP, and DNS server addresses.
  • Support cloud remote device search, device parameter configuration, device program upgrade.
  • Remotely check the TCP connection status and serial port data sending and receiving status through the software. The virtual serial port supports data monitoring.
  • Supports the Modbus gateway function and transfers from Modbus RTU to Modbus TCP. It can support storage Modbus, which can automatically collect device data and store it. Non-storage Modbus gateways are also supported. Support ZLMB configurable table Modbus gateway function.
  • Multiple hosts: In the question-and-answer query mode, multiple computers can access the same serial port at the same time.
  • Support MQTT gateway function.
  • Support JSON to Modbus RTU and 645 instrument protocols, support HTTP POST, HTTP GET format upload data.
  • Support custom heartbeat packet and registration packet functions: can facilitate communication and device identification with the cloud.
  • Password authentication is required for TCP connection establishment to ensure connection security.
  • Support http data submission and delivery. The cloud can directly use http GET commands to interact with serial port data of the device.

Technical Parameters

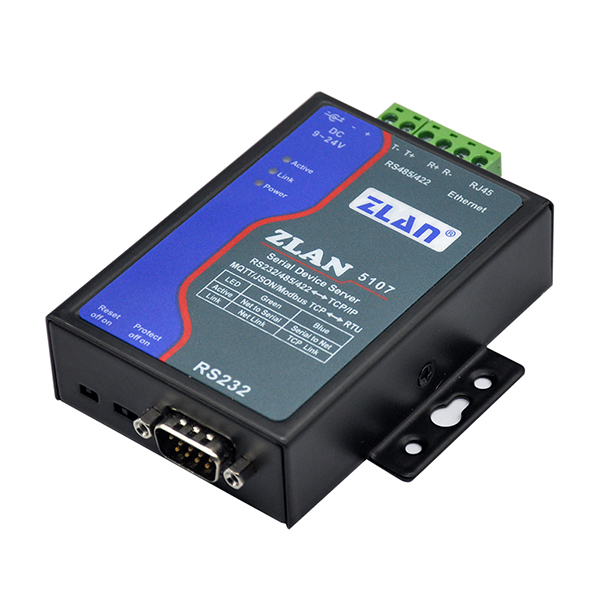

Figure

  • Interface
  • 485/422: terminal; 232:DB9,
  • Power Supply
  • 5.5mm, positive inside and negative outside,
    standard power outlet; Wiring terminal mode.
  • Size
  • L x W x H =9.4cm×6.5cm×2.5cm（±1mm）

Communicate Interface

  • Ethernet
  • RJ45
  • Serial
  • RS232/485/422X1:RXD，TXD，GND，CTS，RTS

Serial Parameters

  • Baud rate
  • 300~921600bps
  • Data bits
  • 7～8bits
  • Check bit
  • None, Odd , even Mark, Space
  • Flow control
  • RTS/CTS，DTR/DCR, NONE

Software

  • Protocol
  • ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、DHCP、DNS
  • Configuration
  • ZLVirCOM tool, WEB browser (can customize the web page),
    device management function library,
    serial port AT command configuration,
    device cloud management (ZLan server)
  • communication method
  • Socket、virtual serial port、Device management library

Working mode

  • Working mode
  • TCP server, TCP client, UDP, Real Com Driver, Modbus TCP, Telnet

Power supply

  • Power
  • 9～24V DC;30mA@12V DC

Environment

  • Running temperature
  • -40~85℃
  • Storage temp
  • -45~120℃
  • Humidity
  • 5~95%RH

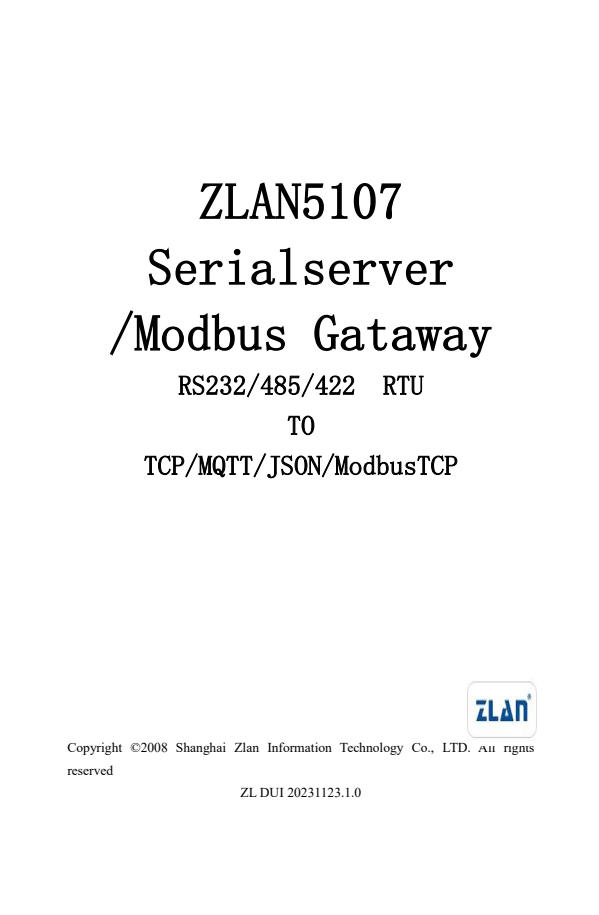

Document download
