Guideway/tabletop type Serial server

ZLAN5103K

Guideway/tabletop type Serial server

  • Multiple hosts: In the question-and-answer query mode, multiple computers can access the same serial port at the same time.
  • Support MQTT gateway function.
  • Support JSON to Modbus RTU and 645 instrument protocols, support HTTP POST, HTTP GET format upload data.
  • Support NTP protocol to obtain network time, used for serial port output for protocol content.

Contact

Download

buy online

  • Product Introduction
  • Technical Parameter
  • Product File

Summary

ZLAN5103K is a RS232 device data collector/iot gateway specially designed for industrial environments, with serial server, Modbus gateway, MQTT gateway, RS232 to JSON and other functions in one. It has an RS232 interface and an Ethernet interface. It supports rail type installation or desktop type screw hole installation, small size and easy installation. Adopts terminal type power supply, 9 ~ 24V wide voltage input. It saves cost and volume, and has higher cost performance compared with ordinary products.

When the server is used as a common serial port, the host software can send data to the RS232 port of 5103K through TCP/UDP transparent transmission or virtual serial port by connecting the network port to an Ethernet port. The data received on the RS232 interface is also transmitted to the software on the TCP side or the virtual serial port. In the virtual serial port mode, the serial port software that connects to the virtual serial port is not required.

When used as a Modbus gateway, 5103K supports Modbus TCP to Modbus RTU, so that the upper computer can use Modbus TCP protocol to collect data of RS232 Modbus RTU devices. On the contrary, if the RS232 terminal is used as the primary station, it can also be used. 5103K supports more advanced Modbus gateway functions, including configurable Modus gateway ZLMB, storage Modbus gateway, etc., which fully meets various configurations and usages of Modbus gateway. The multi-host feature allows multiple computer masters to access an RS232 slave device at the same time.

Features

  • Multi-mounting design: Support panel mounting/rail mounting.
  • Small size: Compared with ordinary serial port servers, the width is small and does not take up space.
  • Terminal type power supply, 9 ~ 24V wide voltage input, with reverse power supply protection.
  • Terminal type RS232 interface, baud rate supports 300 ~ 921600bps.
  • With RS232 hardware interface protection.
  • Abundant panel indicators for easy debugging: In connection, there are not only LINK lights indicating whether the network cable is well connected, but also LINK lights indicating the establishment of TCP connections; For data indicators, there are independent indicators for serial port to network port and network port to serial port.
  • Support TCP server, TCP client, UDP mode, UDP multicast. The TCP client also supports the TCP server function. The TCP server supports 30 TCP connections and the TCP client supports 7 destination IP addresses.
  • The baud rate ranges from 300 to 921600bps, and the data bit ranges from 7 to 8 bits. The parity bit can be none, odd, even, mark, or space.
  • Supports the MAC address sending function when the device is connected, facilitating device management by the cloud.
  • Provide computer side search, configure device secondary development kit DLL development library.
  • Supports Web browser configuration, dynamic IP address acquisition by DHCP, and DNS server addresses.
  • Support cloud remote device search, device parameter configuration, device program upgrade.
  • Remotely check the TCP connection status and serial port data sending and receiving status through the software. The virtual serial port supports data monitoring.
  • Supports the Modbus gateway function and transfers from Modbus RTU to Modbus TCP. It can support storage Modbus, which can automatically collect device data and store it. Non-storage Modbus gateways are also supported. Support ZLMB configurable table Modbus gateway function.
  • Multiple hosts: In the question-and-answer query mode, multiple computers can access the same serial port at the same time.
  • Support MQTT gateway function.
  • Support JSON to Modbus RTU and 645 instrument protocols, support HTTP POST, HTTP GET format upload data.
  • Support NTP protocol to obtain network time, used for serial port output for protocol content.
  • Support custom heartbeat packet and registration packet functions: can facilitate communication and device identification with the cloud.
  • Password authentication is required for TCP connection establishment to ensure connection security.
  • Supports http data submission and delivery. The cloud can directly use http GET commands to interact with serial port data of the device.

Technical Parameter

Appearance

  • Interface
  • RS232 Female head
  • Power supply
  • Terminal mode
  • Size
  • L x W x H =4.8cm×2.5cm×6.1cm（±1mm）

Communication interface

  • Ethernet
  • RJ45
  • Serial port
  • RS232×1

Serial port parameter

  • Baud rate
  • 300~921600bps
  • Check bit
  • None, Odd , even Mark, Space
  • Data bit
  • 7～8bits
  • Flow control
  • RTS/CTS，DTR/DCR, NONE

Software

  • Protocol
  • ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、DHCP、DNS
  • Configuration
  • ZLVirCOM tool, WEB browser (can customize the web page),
    device management function library, serial port AT command configuration,
    device cloud management (ZLan server)
  • communication method
  • Socket、virtual serial port、Device management library

Working mode

  • Working mode
  • TCP server, TCP client, UDP, Real Com Driver, Modbus TCP, Telnet

Power supply

  • Power
  • 9～24V DC;30mA@12V DC

Environment requests

  • Working temperature, humidity
  • -40 ~ 85℃, 5 ~ 95% RH
  • Storage temperature, humidity
  • -45 ~ 120℃, 5 ~ 95% RH

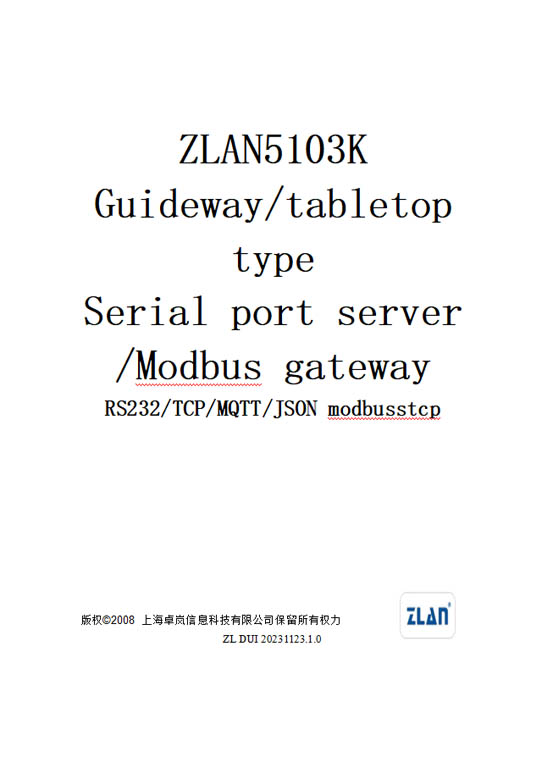

Document download
