Serial port to Ethernet/serial port server single-chip

ZLAN1007

Single chip solution for Internet of Things

  • High single-chip integration
  • Supports Auto Negotiation Full-duplex&half duplex
  • 3.3V working voltage, 3.3V signal tolerance.
  • QFN48 encapsulation.
  • --40°C~85°C industrial-grade chip.

Contact

Download
  • Product Introduction
  • Technical Parameter
  • Product File

Introduction

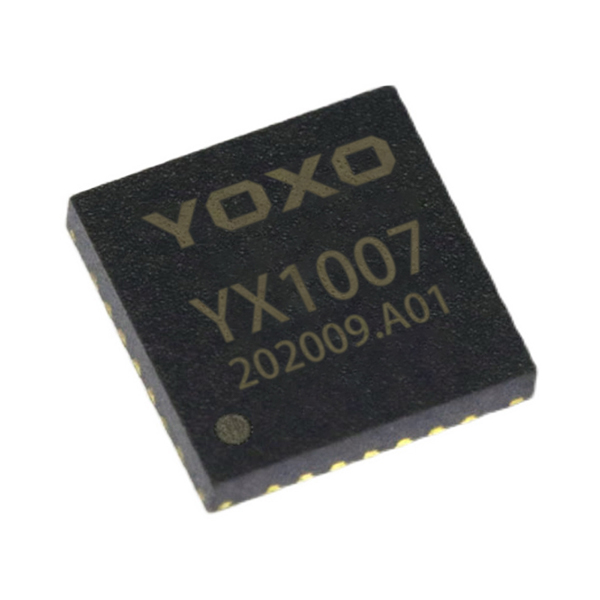

YOXO1007 is a chip launched by Shanghai ZLAN for Internet of Things applications. YOXO is the chip brand of Shanghai ZLAN. YOXO1007 can realize serial port to Ethernet, UART to TCP/UDP, MQTT gateway, Modbus gateway, JSON to Modbus autonomous acquisition, docking cloud platform and other functions in a single chip, and its network communication mode is Ethernet. Serial port rates range from 110 to 921.6kbps. It can also carry out simple encryption, edge computing and other functions. It has the characteristics of high integration, high cost performance, simple development, strong stability and low power consumption.

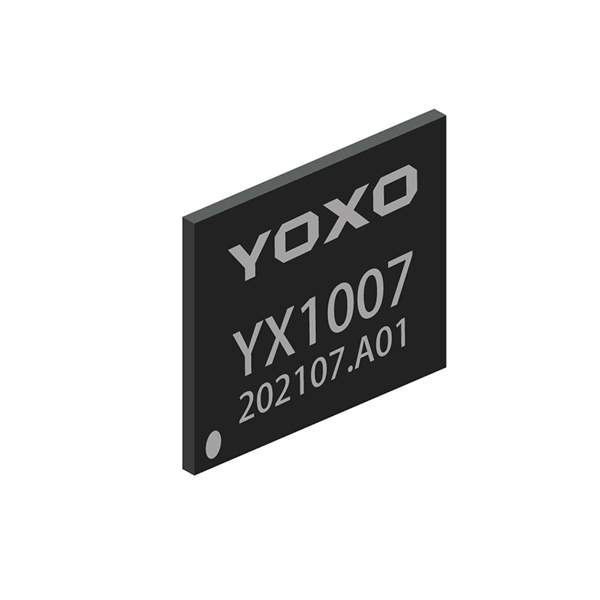

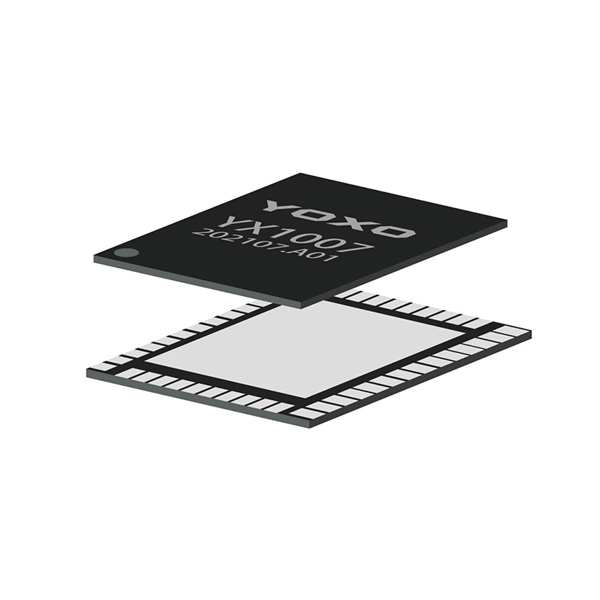

YOXO1007 adopts QFN48 package, small size, its Ethernet interface has integrated PHY function, the peripheral circuit only needs power supply, crystal vibration and resistance and capacitance, the hardware design is relatively simple. The working current is about 25mA, 3.3V single power supply. The basic function of YOXO1007 series is to realize the protocol conversion from UART to TCP/IP, that is, the data received by UART is transferred to the cloud/computer, and the data sent by the cloud/computer is forwarded to the UART. To achieve these functions, there is no need for user development programs, and the internal program of YOXO1007 is already solidified and can be used by users. It can be regarded as a single-chip level serial port to network port chip, Internet of Things gateway chip.

Feature

  • 1)Search and configure parameters of YOXO1007 through network port;
  • 2)Download the customized Web page through the network port and set parameters such as IP address and baud rate on the Web page.
  • 3)The working mode of YOXO1007 can be configured to automatically connect 7 cloud servers;
  • 4)YOXO1007 can be configured with registration and heartbeat packet functions;
  • 5)Support MQTT gateway function.
  • 6)Support configurable JSON to Modbus/DLT-645 function, support to interconnect with public cloud and ZLAN cloud.
  • 7)Can be configured as http mode, can be directly connected with the cloud asp/php GET/POST command;
  • 8)Can send instructions through the active serial port, collect instrument data and upload it in a customized format;
  • 9)With Modbus gateway function, Modbus TCP to Modbus RTU;
  • 10)Provide device configuration tool ZLVircom, which can support virtual serial port and provide dynamic link library for device management on Windows platform.
  • 11)Support SNMP protocol, can convert various serial port protocols into SNMP protocol (need to select YOXO1007-snmp model).
  • 12)YOXO1007N supports P2P Intranet traversal communication to achieve networking through ID anytime and anywhere (need to select YOXO1007N model).

Technical Parameter

Communicate Interface

  • Ethernet
  • Built-in PHY, supporting automatic negotiation

Serial Port Interface

  • Interface
  • 3.3V UART
  • Serial port
  • 1
  • Parity bits
  • None, Even, Odd, Space, Mark
  • Data bits
  • 5～9
  • Stop bits
  • 1,2
  • Flow Control
  • RTS/CTS,DTR/DCR,XON/XOFF
  • Baud rate
  • 110bps～921kbps

Software

  • protocol
  • TCP,HTTP,UDP,ICMP,ARP,IP,DNS,DHCP,MQTT,Modbus
  • Virtual serial port platform
  • Windows 98/2000/XP/WIN7/WIN8/WIN10
  • Setting method
  • Web browser, Zhuolan ZLVirCom, serial port class AT command

Environment

  • Running temp
  • -40～85℃
  • Storage temp
  • -45～120℃
  • Humidity
  • 5～95% RH

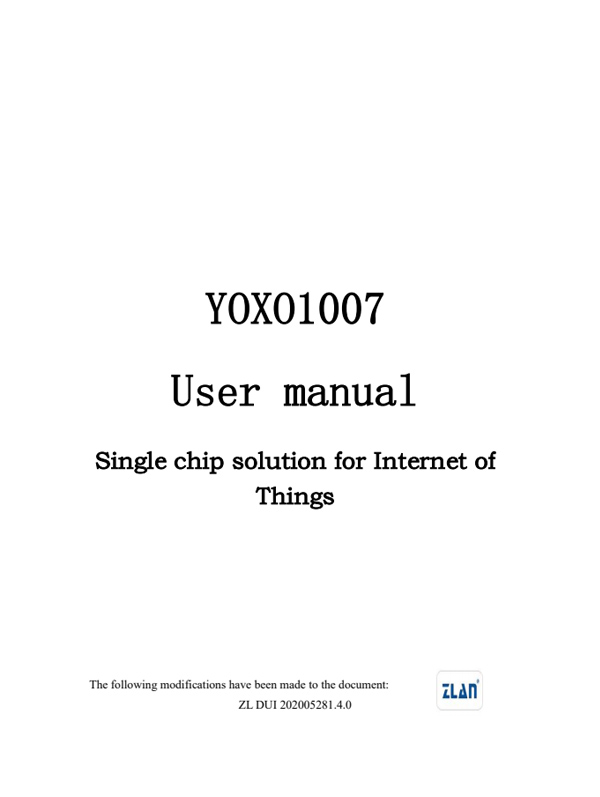

Document download
